Buddy™ Tig 160
160 A p HF TIG / Stick welder
Portable solution for professional welding
The BuddyTMTig160 is a robust and durable power source for the professional welder. The machine provides state- of-the-art welding performance and reliability through useofthelatestIGBTtechnology.
Designed for durability
he BuddyTMTig160 is a user friendly, robust and still light weight TIG machine, offering HF start and a stick (MMA) mode.

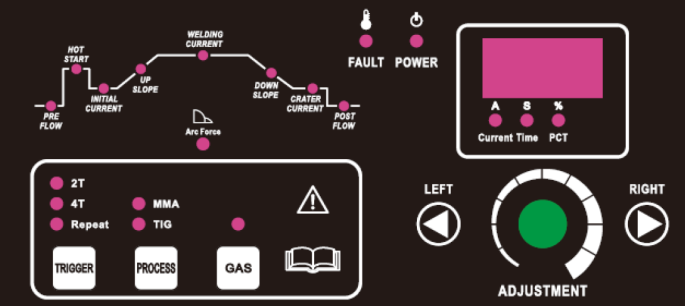

Control panel
he control panel on the BuddyTMTig160 is very easy to use with one adjustment knob to set the weld current and one to set the slope down time in TIG mode or the arc force in MMA mode.
Applications
- Plant fabrication and Maintenance
- Site Maintenance/Repair
- Civil construction
- General fabrication
- Agriculture
- Superior arc characteristics –Smooth welding condition
- Generator compliant – Suitable for use with generators
- Easy-to-use – Set the welding current and slope down/arc force and weld with excellent result
- Practical design – makes the power source easy to carry which enables use at almost any work site
- Robust design – withstands harsh environments
- Can be used with extended mains cable- provides extended working range
| Technical Data | Buddy Tig 160 |
| Power Source | |
| Mains supply, V/Ph Hz | 230/1 50/60 |
| Fuse (slow), A | 16 |
| Permitted load at 40ºC TIG | |
| 25% duty cycle, A/V | 160/26, 4 |
| 60% duty cycle, A/V | 100/14 |
| At 100% duty cycle, A/V | 90/13, 6 |
| Permitted load at 40ºC MMA | |
| 25% duty cycle, A/V | 160/26, 4 |
| 60% duty cycle, A/V | 100/24, 2 |
| At 100% duty cycle, A/V | 80/23, 2 |
| Setting rang TIG/MMA (DC), A | 5 - 160 |
| Open circuit voltage, V | 58 |
| Input Current TIG | 11, 4A |
| Input Current MMA | 16, 3 A |
| Dimensions lxwxh, mm | 310x140x230 |
| Weight, kg | 60 |
| Enclosure class | IP 23S |
| Application class | S |
| Ordering Information | |
| Buddy Tig160 Inverter | 46F0225160 |
| Tig Torch | 46F0822001 |
